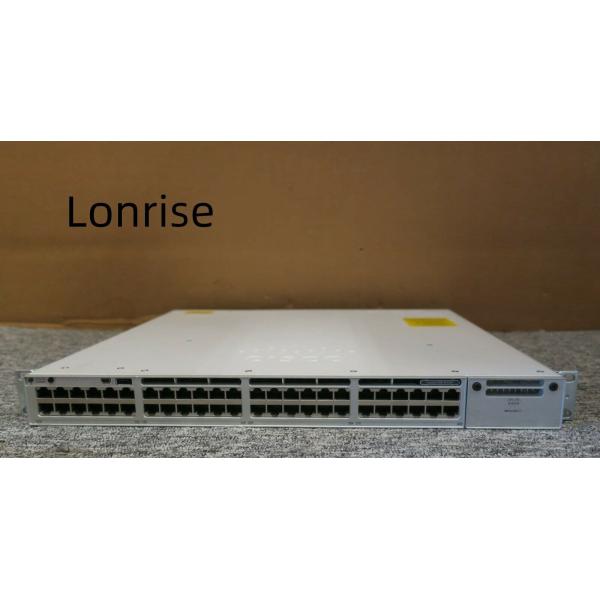

C9300-48P-A Cisco Switch Catalyst 9300 48-Port PoE+ Network Advantage Cisco 9300 Switch

Brand Name : Cisco

Model Number : C9300-48P-A

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 50 units / months

Delivery Time : 2-3 days

Packaging Details : In original carton package

Default AC power supply : 715W AC

DRAM : 8 GB

Flash : 16 GB

Forwarding rate : 154.76 Mpps

Jumbo frames : 9198 bytes

Stacking bandwidth : 480 Gbps

Dimensions (H x W x D)ports : 1.73 x 17.5 x 17.5 Inches

Weight : 16.33 Pounds

Contact Now

The Cisco Catalyst 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-48P-A is 48-port PoE+, Network Advantage Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

Product Code C9300-48P-A
Product Description Catalyst 9300 48-port PoE+, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 48 POE+
Default AC power supply 715W AC
Available PoE power 437W
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds

Part Number C9300-48P-A
Product Description Catalyst 9300 48-port PoE+, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 48 POE+
Default AC power supply 715W AC
Available PoE power 437W
Cisco StackWise-480 Yes
Cisco StackPower Yes
Default power supply PWR-C1-715WAC-P/2
Switching capacity 256 Gbps on 48-port Gigabit Ethernet model
Stacking bandwidth 480 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries 32,000
IPv6 routing entries 16,000
Multicast routing scale 8000
QoS scale entries 5120
ACL scale entries 5120
Packet buffer per SKU 16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries 64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM 8 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 2000
Jumbo frames 9198 bytes
Total routed ports per 9300 Series stack 208
Wireless bandwidth per switch Up to 96 Gbps on 48-port Gigabit Ethernet model
Forwarding rate 154.76 Mpps
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds
Mean time between failures (hours) 299,000
Safety certifications

● UL 60950-1

● CAN/CSA-C222.2 No. 60950-1

● EN 60950-1

● IEC 60950-1

● AS/NZS 60950.1

● IEEE 802.3
Electromagnetic emissions certifications

● 47 CFR Part 15

● CISPR22 Class A

● EN 300 386 V1.6.1

● EN 55022 Class A

● EN 55032 Class A

● CISPR 32 Class A

● EN61000-3-2

● EN61000-3-3

● ICES-003 Class A

● TCVN 7189 Class A

● V-3 Class A

● CISPR24

● EN 300 386

● EN55024

● TCVN 7317
Environmental Reduction of Hazardous Substances (ROHS) 5
